Unmatched Efficiency
- Maximum Discharge Pressure: 40 bar / 580 PSI, enabling high-pressure applications with ease
- Flow Rate: 350 liters per minute, ensuring quick and efficient gas compression

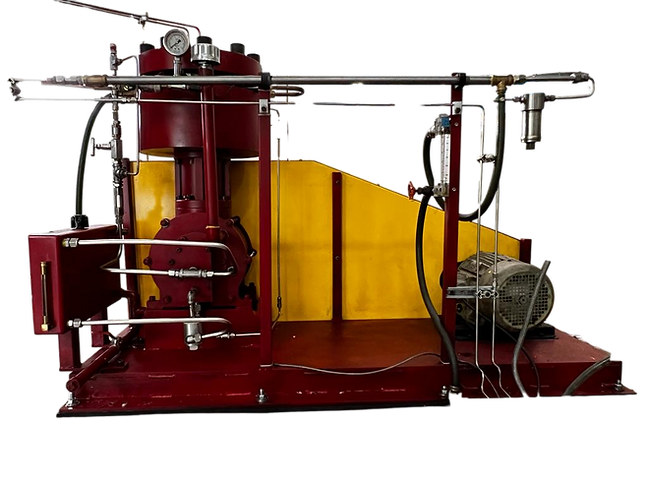

Triple Metal Diaphragm Compressor
Precision-Engineered Performance for High-Purity Gas Applications
Triple Metal Diaphragm Compressor - Precision Engineering for High-Purity Gas Applications
Elevate Your Operations with Precision-Engineered Performance
Our Triple Metal Diaphragm Compressor is at the forefront of technology, designed specifically for carbon monoxide and high-purity gas applications. With its robust design and superior efficiency, it delivers unparalleled performance, ensuring your operations are both reliable and cost-effective.
Why Choose Our Triple Metal Diaphragm Compressor?
Built with Excellence
- Constructed using premium materials: SS301, Brass C2700, and SS301 for the diaphragm
- Advanced cooling system requiring just 10 LPM
- Maintains optimal temperatures and reduces wear
- Ensures durability and long service life
Customization for Precision Fit
Tailor-made solutions to perfectly align with your specific operational needs, enhancing efficiency and performance. Our engineering team works closely with you to design a compressor that exceeds your expectations.
Technical Specifications of the Standard Model
| Designed For | Carbon Monoxide |
|---|---|
| Maximum Discharge Pressure | 40 bar / 580 PSI |
| Relief Valve Setting | 50 bar / 725 PSI |
| Max Design Suction Pressure | 30 bar / 435 PSI |
| Nominal Compressor Speed | 500 RPM |
| Nominal Displacement | 86 cm³ per revolution |
| Stroke Length | 90 mm |
| Diaphragm Material | SS301, Brass C2700, SS301 |
| Gas used for Test | Air |
| Crankcase & Head Oil Requirement | AW-32 |
| Cooling Water Required | 10 LPM |
| Motor | 5 HP / 3.7 kW, 3 Phase, 50 Hz |
| Leak Detection Switch | SPDT 220V 5 Amps, Max |
| Auxiliary Equipment | After Cooler |
Customization Options
Building New Solutions with Customization
Every operation is unique, and so are your requirements. We offer comprehensive customization options for our Triple Metal Diaphragm Compressor to meet the precise needs of your project. From adjusting the discharge pressure and flow rate to selecting specific materials for the diaphragm, our engineering team works closely with you to design a compressor that not only meets but exceeds your expectations.
Get in Touch
Interested in Learning More?
Our expert team is here to provide all the information you need and guide you through the customization process. For direct inquiries, please reach out to us using the contact form below.
Elevate your high-purity gas applications today with our state-of-the-art Triple Metal Diaphragm Compressor.
